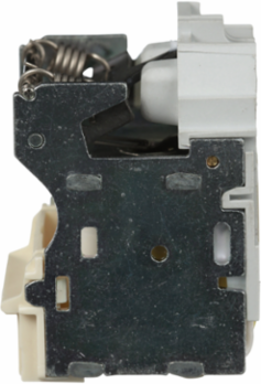

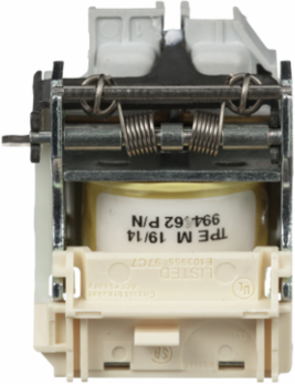

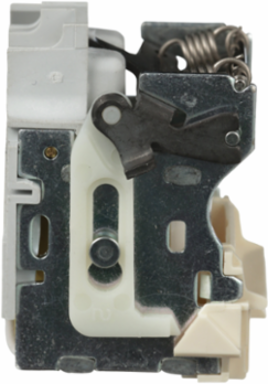

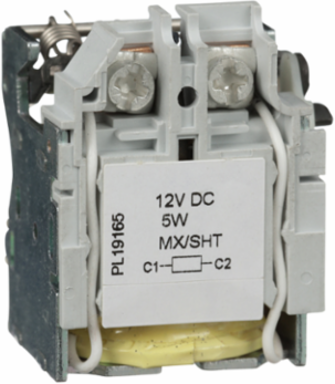

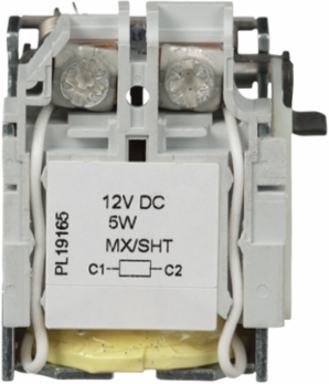

Square D S29382 PowerPact H/J/L Shunt Trip Circuit Breaker Accessory 12V DC
Square D S29382 PowerPact H/J/L Shunt Trip Circuit Breaker Accessory 12V DC
- MPN: S29382
- UPC: 785901622956
- PPN: SCH-S29382
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1257.78/ EA
Description
The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
Specifications
Specifications
- Range Of Product
- PowerPact H || PowerPact J || PowerPact L
Product Or Component Typeshunt trip
Environment
- Product Certifications
- CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Tightening Torque
- 1.4-1.4 N.m 0.82-2.5 mm² AWG 18...AWG 14)
Rated Voltage12-12 V DC
