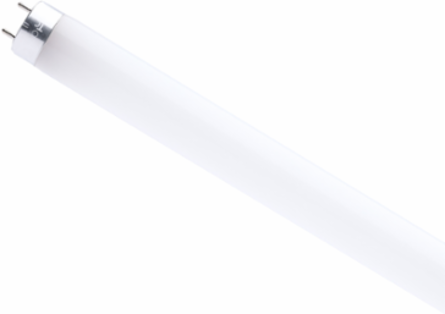

Satco S49978R1 14 Watt - 4 Foot T8 LED - G13 Base - 5000K - Type A
- MPN: S49978R1
- UPC: 045923403200
- PPN: SAT-S49978R1
- UNSPSC: 39101628
CAD
$10.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SATCO NUVO's S49978R1 Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing, these lamps are damp location rated for reliable use in humid areas.
Features
- 5000K CCT
- Type A - Direct Replacement
- Integrated Thermal Protection
- Damp Location Rated
- Dimmable with Select Ballasts
- Rated for Use in Enclosed Fixtures
- NSF Rated
- Glass Tube
- Double Ended Wiring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Weight | 0.38 lbs |
| Amps | 0.117-0.051A |
| Ballast Bypass Direct | Direct |
| CCT Selectable | No |
| Title 20 | Exempt |
| Color Temp | Natural Light |
| Dimmable | Yes-Dimmable |
| DLC Approved | Yes |
| DLC ID | S-5GVY6Y |
| Enclosure Rating | Enclosed Rated Lamp |
| BAA Compliant | No |
| Flr Equiv | 32W/30W/28W/25W |
| Housing Color | White |
| Incandescent Equiv | 175W |
| Lamp Base | Medium Bi Pin |
| Lamp Shape | T8 |
| Lumens | 2200L |
| MOD Decimal | 1.1 in. |
| NSF Approved | Yes |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Rated For Enclosed Fixture | Yes |
| Safety Listing | cULus - Listed |
| Technology | LED |
| THD | 20% |
| Volts | Ballast Dependent |
| Has Emergency Battery | No |
| IOT Enabled | No |
| Length | 48 in |
|---|---|
| Warranty | 5-Years |
| ANSI Base | G13 |
| Beam Spread | 210 |
| CA Regulations | Exempt - Base Not Regulated |
| T24 Compliant | No |
| CRI | 80+ |
| Dimmable Function | Only in Type A mode, Check Ballast MFG for Dimmer Compatibility |
| DLC Classification | Standard |
| DLC Primary Use | Replacement Lamps (Plug and Play) (UL Type A) |
| FCC Compliant | Yes |
| Product Type | Linear |
| Avg Rated Hours | 50000 |
| Finish | Gloss White |
| Indoor Outdoor | Indoor |
| Lamp Filament | LED |
| Lamp Ballast Type A/B/C | Type A |
| Material | Glass / Steel |
| MOL Decimal | 47.78 in. |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| RoHS Compliant | Yes |
| Location Rating | Damp |
| Temperature (CCT) | 5000K |
| Three-Way | No |
| Watts | 14W |
| Has Camera | No |
