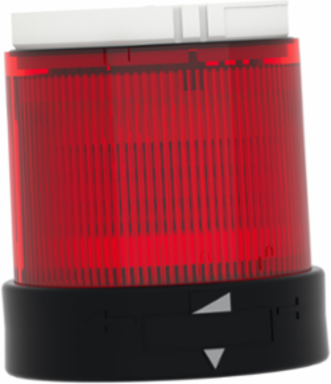

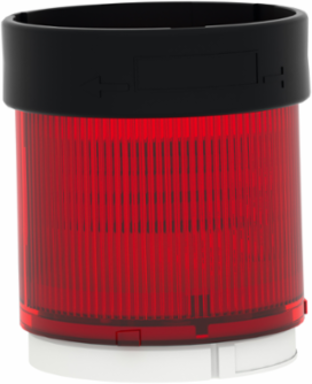

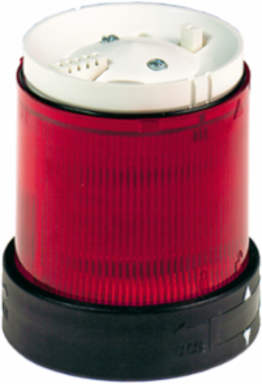

Schneider Electric XVBC2B4 Harmony XVB Illuminated Indicator Bank 70mm Red LED 24V AC/DC
- MPN: XVBC2B4
- PPN: SCH-XVBC2B4
CAD
$187.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

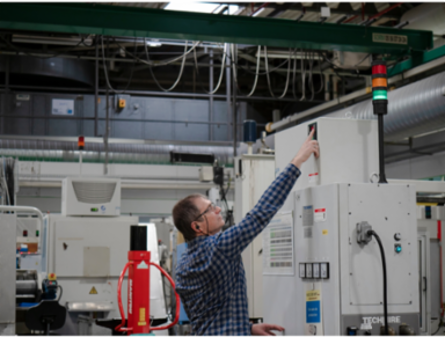

This Harmony XVB illuminated unit is supplied with 24V AC/DC and has a red LED with a steady light. This red indicating bank lens is designed as an illuminated unit to be connected with base and create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with base unit and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Physical Attributes
- Cad Overall Depth
- 70 mm
- Cad Overall Width
- 70 mm
Cad Overall Height63 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- < 47 mA AC/DC, < 47 mA AC/DC< 47 mA AC/DC, < 47 mA AC/DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.36279151663716575, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0009309117660152265, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 33 kg CO2 eq., 33.45948655661019
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Beacon Or Indicator Bank Unit Type
- illuminated unit
- Component Name
- XVBC
- Important Message
- XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
- Material
- polycarbonate
- Nominal Voltage Limit
- 0.85...1.1 Un IEC 60947-5-1
- Product Or Component Type
- indicator bank
- Range Of Product
- Harmony XVB Universal
- Signalling Type
- steady
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP0709007EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531909001
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCCC, EAC, CSA C22-2 No 14, UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3196245587512752
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.5686986332828385
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Assembly Stylecustomer assembly, up to 5 units
Bulb Typeprotected LED
Electrical Shock Protection Classclass I on support tube IEC 61140class II on base unit IEC 61140
Light Sourceintegral LED, red
Mounting Diameter70 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software Versionv6.2-6
Total Lifecycle Carbon Footprint36 kg CO2 eq.
Database Version2024-04
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe major function of the Harmony XVB range of products is to offer optical or audio signalling, specifically to identify the various states or sequences of a machine or installation from a distance and through 360° in life span of 10 years.This product will be active for 73% of the time, with a power consumption of 0.72W and adhering to standards IEC 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Recyclability Potential In %9
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, <= 1 x 1.5 mm² with cable end
Package Weight(Lbs)135 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-50 °C-25-50 °C
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- UL type 4X UL indoor)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0709007EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint35.71153217704748
Environmental DisclosureENVPEP0709007EN
Ip Degree Of ProtectionIP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- indicator bank
Range Of ProductHarmony XVB Universal
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
