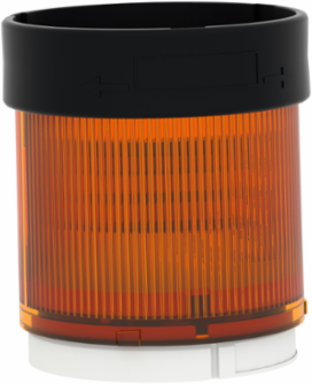

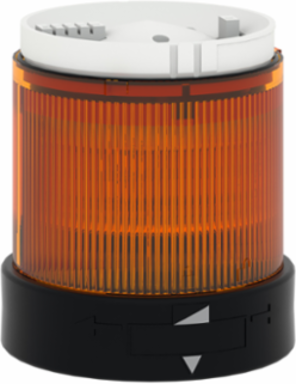

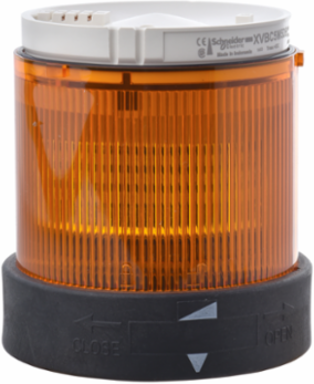

Schneider Electric XVBC5G5 Harmony XVB 70mm Flashing Indicator Bank, Integral LED, 120V AC
- MPN: XVBC5G5
- PPN: SCH-XVBC5G5
CAD
$231.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This orange illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Harmony XVB Universal |
|---|---|
| Light Source | integral LED, orange |
| Component Name | XVBC |
| Signalling Type | flashing |
| Beacon Or Indicator Bank Unit Type | illuminated unit |
| Mounting Diameter | 70 mm |
|---|---|
| Product Or Component Type | indicator bank |
| Material | polycarbonate |
| Bulb Type | protected LED |
| [Us] Rated Supply Voltage | 120 V AC |
Complementary
| Current Consumption | < 17 mA AC |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Assembly Style | customer assembly, up to 5 units |
| Cad Overall Depth | 70 mm |
| Net Weight | 0.17 kg |
|---|---|
| Cad Overall Height | 63 mm |
| [Ui] Rated Insulation Voltage | 250 V IEC 60947-1 |
| Flashing Frequency | 1-1 Hz |
| Cad Overall Width | 70 mm |
Environment
| Product Certifications | CCC || EAC || CSA C22-2 No 14 || UL 508 |
|---|---|
| Pollution Degree | 2 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class I on support tube IEC 61140 || class II on base unit IEC 61140 |
| Standards | EN/IEC 60947-5-1 |
|---|---|
| Ip Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529 |
| Nema Degree Of Protection | Type 4X UL indoor) |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP070907EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | N/A |
