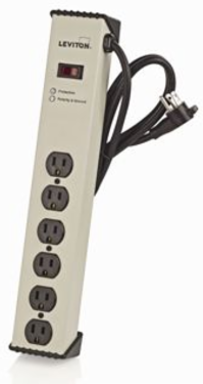

Leviton 5100-IPS 15 Amp Surge Protected 6-Outlet Power Strip, 720 Joules, 6 Foot Cord
- MPN: 5100-IPS
- UPC: 078477243442
- PPN: LEV-5100-IPS
CAD
$174.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1449 3rd Edition, 125 Volt 15 Amp Surge Protected, 6-Outlet Strip w/Switch, 1330 Joules, 6 Feet 14-3 SJT Cord Length, Right Angle Plug, Aluminum Housing - BEIGE
Features
- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI/IEEE Category A, B and C
- C62.41.1, C62.41.2 & C62.45
- Warranty
- 5-Year Limited
UL1449 3rd EditioncULus Listed
Performance Data
- Alarm
- Audible at Protection Loss
- MCOV
- 150V
- Noise Filtering
- -5 to -25dB (@500K - 100 MHz)
Joules Rating720.0
Maximum Surge Current84kA
Voltage Protection Rating (VPR) L-N, L-G, N-G600V, 600V, 600V
Material Specifications
- Amperage
- 15 A
- Enclosure
- Plastic|Powder Coated Steel
- Grade
- Industrial
- Surge Protection
- Yes
- Voltage
- 125 VAC
Cord Length6 Foot
Frequency50/60Hz
Number of Receptacles6
Surge TechnologyMOV
Environmental Specifications
- Enclosure
- Plastic|Powder Coated Steel
Operating Temperature-10°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Frequency
- 50/60Hz
- Number of Receptacles
- 6
- Surge Protection
- Yes
- Voltage
- 125 VAC
Cord Length6 Foot
GradeIndustrial
Operating Temperature-10°C to 60°C
Surge TechnologyMOV
