Documentation & Downloads

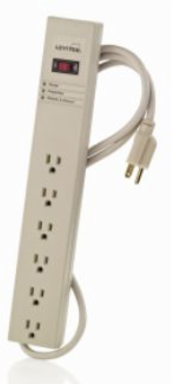

Leviton 5300-PS Surge Protected 6-Outlet Power Strip, 15A 125V, 1520 Joules, 6 Foot Cord
- MPN: 5300-PS
- UPC: 078477833575
- PPN: LEV-5300-PS
CAD
$371.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1449 3rd Edition, 125 Volt 15 Amp Surge Protected, 6-Outlet Strip w/Switch, 1520 Joules, 6 Feet 14-3 SJT Cord Length, Plastic Housing - BEIGE
Features
- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI/IEEE Category A, B and C
- C62.41.1, C62.41.2 & C62.45
- Warranty
- 5-Year Limited
UL1449 3rd EditioncULus Listed
Performance Data
- Joules Rating
- 1520
- Maximum Surge Current
- 96kA
- Voltage Protection Rating (VPR) L-N, L-G, N-G
- 500V, 600V, 500V
MCOV130V
Noise Filtering-6 to -40 dB (@50K - 100 MHz)
Material Specifications
- Enclosure
- Durable Thermoplastic
Product Features
- Application
- Data-Sensitive Operations
- Circuitry
- MOV-Based Suppression
- Cord Length 14-3-SJT
- 6 Feet
- Duty
- Data Sensitive
- Max Surge Current kA L-N
- 36kA
- Standards and Certifications
- UL1449, 1363 & 1283 / CSA / ANSI/IEEE Cat AB
- UL1449 Impulse 6kV/500A L-N
- 330V
Circuit ProtectionCircuit Breaker & Internal Fusing
ColorBeige
DiagnosticsPWR/Protection/Polarity
Housing MaterialPlastic
Noise Rejection20 to 40 dB at 100kHz-300MHz
Type6-Outlet Strip w/Switch
Environmental Specifications
- Operating Temperature
- -10°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Frequency
- 50/60Hz
- Number of Receptacles
- 6
- Surge Technology
- MOV
Cord Length6 Foot
GradeCommercial
Surge ProtectionYes
Voltage125 VAC
