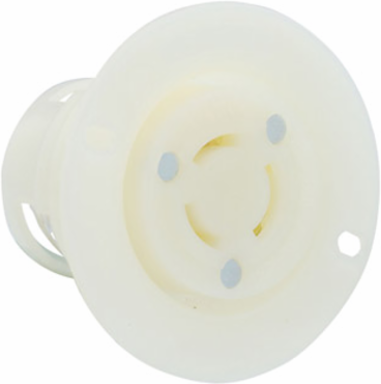

Leviton 7557 Flanged Outlet Locking Receptacle, 15/10 Amp, 125/250 Volt, Nylon, NEMA WD-6
- MPN: 7557
- UPC: 078477820124
- PPN: LEV-7557
CAD
$77.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

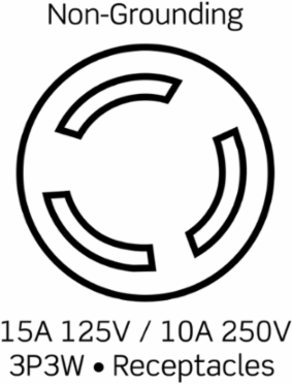

15/10 Amp, 125 Volt/250 Volt, NEMA Non-NEMA, 3P, 3W, Flanged Outlet Locking Receptacle, Industrial Grade, Non-Grounding - WHITE
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Solid Brass
- Terminal Screws
- Brass 10-32
ColorWhite
Grounding ScrewBrass 8-32
Strap MaterialThermoplastic Nylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.18-10 AWG
TerminationBack
Product Features
- Brand
- Black and White
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 15/10 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
