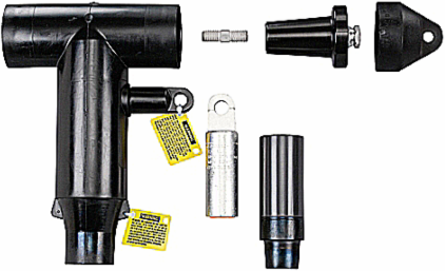

Thomas & Betts K655DLR-LM0300-SG3 Deadbreak Direct Test Elbow Connector
- MPN: K655DLR-LM0300-SG3
- UPC: 007511433303
- PPN: T-B-K655DLR-LM0300-SG3
CAD
$1186.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation 1.280-1.430 inches, Aluminum Compression Lug, Conductor Size 350 Stranded/Compressed or 400 Solid/Compact. Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size 350 Stranded/Compressed or 400 Solid/Compact.
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- 1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
IGCC4586 Electrical connector assembly
TypeDeadbreak Direct Test Elbow Connector
Application15/25kV, 600 Amps
SizeCable Insulation 1.280-1.430 inches
MaterialHousing - EPDM Rubber
Voltage Rating15/25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13.25x10.5x4.38
