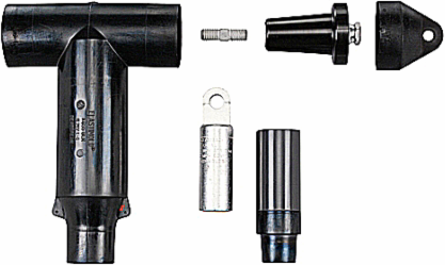

Thomas & Betts K655LRM2380 Deadbreak Elbow Connector
- MPN: K655LRM2380
- UPC: 075114097901
- PPN: T-B-K655LRM2380
CAD
$1270.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Copper Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size kcmil Compressed/Stranded 700/750 or Compact/Solid 900.
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 13.25x10.5x4.38 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Conductor Size kcmil Compressed/Stranded 700/750 or Compact/Solid 900. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
| Consist Of | Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Deadbreak Elbow Connector |
| Application | Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus. |
| Size | Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15/25kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
