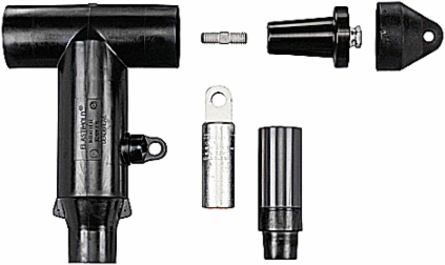

Thomas & Betts K656LR-G5250-SG3 Deadbreak Elbow Connector with Test Point
- MPN: K656LR-G5250-SG3
- UPC: 075114348324
- PPN: T-B-K656LR-G5250-SG3
CAD
$1474.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size Compressed/Stranded 2/0 or Compact/Solid 260. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 15/25kV, 600 Amp Deodbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Non-Corrosive Capacitive Voltage Test Point. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector with Test Point
Application15/25kV, 600 Amp, Deadbreak Connector
Size10.36 inch X 13.00 inch from bottom to centerline of bushing, 3.38 inch Diameter
Conductor RangeConductor Size Compressed/Stranded 2/0 or Compact/Solid 260
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1, Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13x9x7.75
