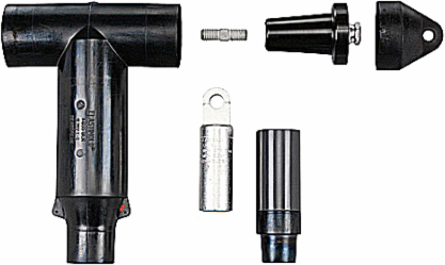

Thomas & Betts K655LR-G0240-SG3 Deadbreak Elbow Connector
- MPN: K655LR-G0240-SG3
- UPC: 075114369282
- PPN: T-B-K655LR-G0240-SG3
CAD
$921.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression / Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersivle
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector
ApplicationDesigned to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus.
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Conductor RangeConductor Size AWG Compressed Stranded 1/0 or Compacted Solid 2/0.
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist OfElbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13x9x7.75
