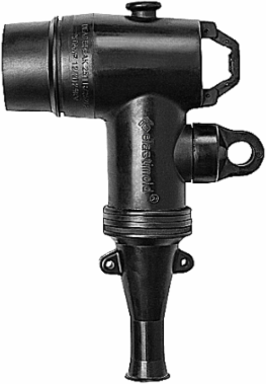

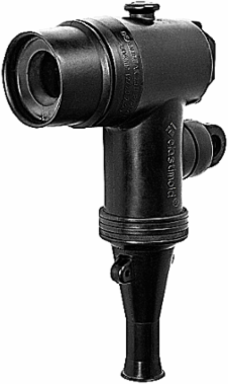

Thomas & Betts 252LR-B5220-S Deadbreak Elbow Connector with Test Point

MPN: 252LR-B5220-S
UPC: 075114345804
PPN: T-B-252LR-B5220-S

$304.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635-0.905 inches (16.13-22.99mm), Bi-Metal Lug, Conductor Size 220 - #2 Stranded/Compressed, #1 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Cold-Shrinkable Jacket Seal.

Features

15/25kv, 200 Amp Deadbreak Elbow
Fully Shielded, Fully Submersible Molded Rubber Housing
100 Percent Peroxide-Cured Construction Includes Insulation and Conductive EPDM Materials
Provision for Hot Stick Operation
Provision for Ground Wire Connection
Wide Cable Range with Minimum Number Sizes
Long Bi-metal Compression Lug is Standard
Non-corrosive, Capacitive Test Point

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, fully Submersible Molded Rubber Housing. Provision for Hot Stick Operation. Non-Corrosive, Capacitive Test Point. Jacket Seal.
Standard	ANSI/IEEE Standard 386
Connection	Compression/Crimp
Material	Housing - EPDM Rubber
Voltage Rating	15/25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible

IGCC	4586 Electrical connector assembly
Type	Deadbreak Elbow Connector with Test Point
Application	15/25kV, 200 Amp Deadbreak Connector
Size	Length 7.531 inch from bottom edge to center of Installation O-Ring. Width 5.454 inch.
Conductor Range	#2 Stranded/Compressed, #1 Solid/Compact.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius
Consist Of	Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
