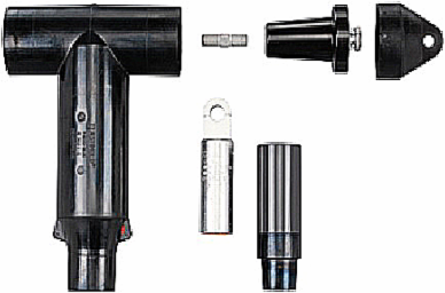

Thomas & Betts K675LR-J2330-SG3 Deadbreak Elbow Connector
- MPN: K675LR-J2330-SG3
- UPC: 075114169011
- PPN: T-B-K675LR-J2330-SG3
CAD
$1177.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression/Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions, Fully Submersible
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector
ApplicationDesigned to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
Size10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
Conductor RangeConductor Size 330 - Stranded/Compressed 500 kcmil, Solid/Compact 600 kcmil, mmsq 250/300.
ColorBlack
Amperage Rating900 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13.25x10.5x4.38
