Thomas & Betts K655LR-H2270-SG3 Deadbreak Elbow Connector

MPN: K655LR-H2270-SG3
UPC: 007511415460
PPN: T-B-K655LR-H2270-SG3

$1018.87

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Copper Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG Compressed/Stranded 4/0 or kcmil Compact/Solid 250 or mm2 Compact 125. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
Standard	ANSI/IEEE Standard 386
Conductor Range	Conductor Size AWG Compressed/Stranded 4/0 or kcmil Compact/Solid 250 or mm2 Compact 125.
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

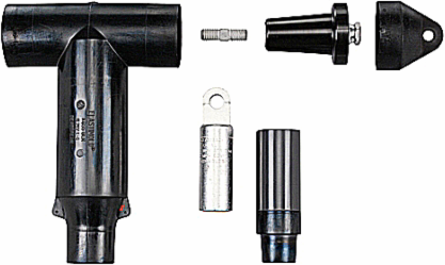

Consist Of	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart

IGCC	4586 Electrical connector assembly
Type	Deadbreak Elbow Connector
Application	Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus.
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Material	Housing - EPDM Rubber
Voltage Rating	15/25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
