Thomas & Betts K656CH-G0230 15/25KV 600A DB S H JOINT TP G0230
- MPN: K656CH-G0230
- UPC: 075114402620
- PPN: T-B-K656CH-G0230
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded #1 or Compacted Solid 1/0.
Specifications
Additional Information
- Application
- Compact Design is suitable for Small Vaults and Manholes.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes
- Product Main Type
- ELASTIMOLD 600A SEPARABLE CONNECTORS
- Product Type
- Deadbreak Separable H-Joint Assembly
- Special Functions
- Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20190805

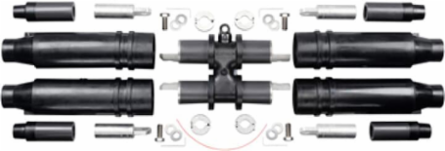

Includes1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Installation Instructions
MaterialHousing - EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeOverall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
StandardsANSI/IEEE Standard 386
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
