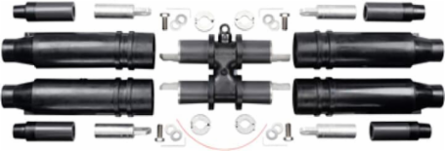

Thomas & Betts K656CH-M0360 15/25KV 600A DB S H JOINT TP M0360

MPN: K656CH-M0360
UPC: 075114376327
PPN: T-B-K656CH-M0360
UNSPSC: 39121421

$4918.10

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size 650 Stranded Compressed or 750 kcmil Compacted Solid.

Specifications

Classifications

WEEE Category	Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)	4586 >> Electrical connector assembly

Additional Information

Application	Compact Design is suitable for Small Vaults and Manholes.
Color	Black
Current Rating	600 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20180716
Includes	1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Receptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Installation Instructions
Material	Housing - EPDM Rubber
Product Type	Deadbreak Separable H-Joint Assembly
Special Functions	Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Temperature Range	-40 to +65 °C
