Thomas & Betts K656CH-HO240 15/25KV 600A DB S H JOINT TP HO240
- MPN: K656CH-HO240
- UPC: 783786375233
- PPN: T-B-K656CH-HO240
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
Specifications
Additional Information
- Application
- Compact Design is suitable for Small Vaults and Manholes.
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL SPLICE,>1000V
- Size
- Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20021105

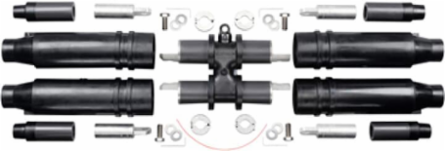

Includes1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Separable H-Joint Assembly
Special FunctionsFully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
