Thomas & Betts K656SR-H0260 15/25KV 600A DB TP STR RECEPT H0260

MPN: K656SR-H0260
UPC: 783786797110
PPN: T-B-K656SR-H0260
UNSPSC: 39121421

$1573.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

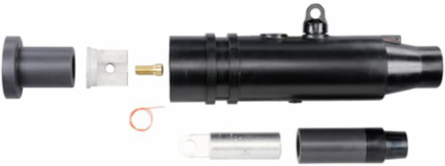

600 Amp, 15/25kV, 600 Series Astraight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Compacted Solid 4/0 or mmSquared Compact 95.

Specifications

Additional Information

Application	15/25kV, 600 Amps
Color	Black
Current Rating	600 A
Includes	1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Straight Receptacle with Test Point
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20130117
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Diameter 4.19 inch x Length 16.98 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
