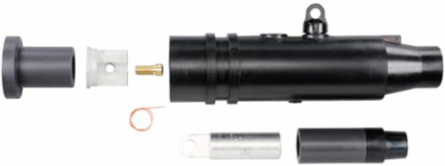

Thomas & Betts K656SR-M0410 15/25KV 600A DB TP STR RECEPT M0410

MPN: K656SR-M0410
UPC: 783786779246
PPN: T-B-K656SR-M0410
UNSPSC: 39121421

$1445.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 1000.

Specifications

Classifications

WEEE Category	Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)	4586 >> Electrical connector assembly

Additional Information

Application	15/25kV, 600 Amps
Color	Black
Current Rating	600 A
Includes	1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Straight Receptacle with Test Point
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20080821
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Diameter 4.19 inch x Length 16.98 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
