Thomas & Betts K465LR-H0250 15/25KV 630A DB ELBOW ASSY H0250
- MPN: K465LR-H0250
- UPC: 783786314171
- PPN: T-B-K465LR-H0250
- UNSPSC: 39121421
CAD
$962.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

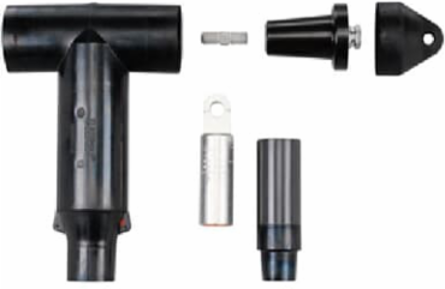

15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.850-1.050 inches (21.590-26.670mm). Aluminum Compression Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact or 70 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
Specifications
Additional
| Voltage Rating | 15 to 25 kV |
|---|---|
| Size | Width 10.36 in., Length 13.00 in. to Installation O-Ring |
| Temperature Range | -40 to +65 C |
| Cable Insulation Diameter | 0.850-1.050 in |
| Compliance | ANSI/IEEE Standard 386, IEC |
| Country of Origin | United States (US) |
| Amperage | 630 A |
|---|---|
| Connection Type | Compression |
| Conductor Size | 2/0 Stranded/Compressed, 3/0 Solid/Compact, 70 mm2 |
| Material | Housing - EPDM Rubber, Aluminum |
| Color | Black |
| Brand | Elastimold |
