Thomas & Betts K675LR-K2330 15/25KV 900A DB ELBOW ASSY K2330
- MPN: K675LR-K2330
- UPC: 783786314164
- PPN: T-B-K675LR-K2330
- UNSPSC: 39121421
CAD
$1024.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 900 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter K - 1.090-1.310 inch (27.689-33.274mm). Copper Compression Lug. Conductor Size 330 - Stranded/Compressed 500 kcmil, Solid/Compact 600 kcmil, mmsq 250/300.
Specifications
Additional Information
- Application
- 15/25kV, 900 Amp, Deadbreak Connector
- Color
- Black
- Current Rating
- 900 A
- Includes

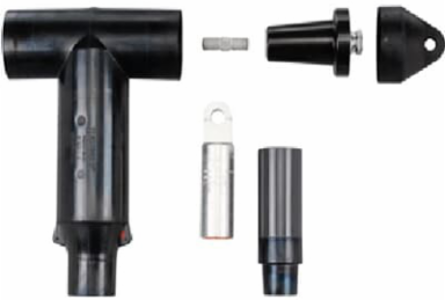

- 1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20020114
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Size10.36 inch X 13.00 inch from bottom to centerline of bushing, 3.38 inch Diameter
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
