Thomas & Betts K675LR-H-2320 15/25KV 900A DB ELBOW ASSY H2320

MPN: K675LR-H-2320
UPC: 783786466849
PPN: T-B-K675LR-H-2320
UNSPSC: 39121421

$1061.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

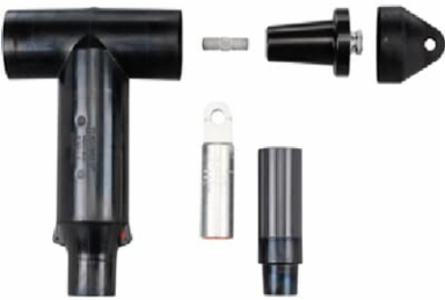

900 Amp, 15/25kV, 600 Series Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.

Specifications

Additional Information

Application	Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
Color	Black
Current Rating	900 A
Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20050630
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
