Thomas & Betts K675LR-M-2400 15/25KV 900A DB ELBOW ASSY M2400

MPN: K675LR-M-2400
UPC: 783786386628
PPN: T-B-K675LR-M-2400
UNSPSC: 39121421

$1118.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

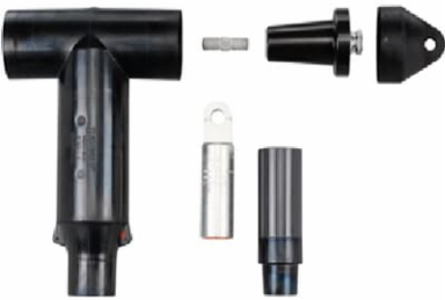

900 Amp, 15/25KV, DeadBreak, Copper, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500.

Specifications

Additional Information

Application	Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus
Color	Black
Current Rating	900 A
Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20030129
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	10.36 inch Wide x 13.00 inch from bottom to center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
