Thomas & Betts K676LR-K2300-SG3 Deadbreak Elbow Connector with Test Point

MPN: K676LR-K2300-SG3
UPC: 075114217613
PPN: T-B-K676LR-K2300-SG3

$1207.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15-25kv 900 Amp Elbow With Sealing Kit

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Standard	ANSI/IEEE Standard 386
Connection	Compression Lug
Material	Housing - EPDM Rubber
Voltage Rating	15/25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather

IGCC	4586 Electrical connector assembly
Type	Deadbreak Elbow Connector with Test Point
Application	Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
Size	Width 10.36 inches, Length 13.00 inches from Bottom Edge to Center of Installation O-Ring
Conductor Range	350 Stranded/Compressed or 400 Solid/Compact
Color	Black
Amperage Rating	900 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

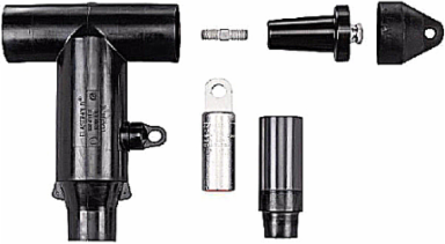

Consist Of	(1) Elbow Housing, (1) Compression Lug, (1) Stud, (1) Insulated Olug with Cap, (1) Cable Adapter, VD Cap-Peroxide, Lubricant, Installation Instructions, Crimp Chart.
