Thomas & Betts K676LR-F2290-SG3 Deadbreak Elbow Connector with Test Point
- MPN: K676LR-F2290-SG3
- UPC: 783786372560
- PPN: T-B-K676LR-F2290-SG3
CAD
$1277.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 0.640 inch to 0.820 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point. SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression Lug
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector with Test Point
ApplicationDesigned to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
SizeWidth 10.36 inches, Length 13.00 inches from Bottom Edge to Center of Installation O-Ring
Conductor Range300 Stranded/Compressed or 350 Solid/Compact
ColorBlack
Amperage Rating900 Amps
Temperature Rating-40 degrees to +65 degrees Celsius

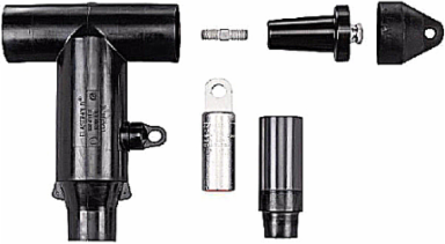

Consist Of(1) Elbow Housing, (1) Compression Lug, (1) Stud, (1) Insulated Olug with Cap, (1) Cable Adapter, VD Cap-Peroxide, Lubricant, Installation Instructions, Crimp Chart.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)6x3.62x3.62
