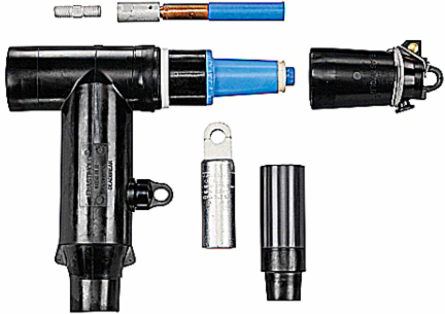

Thomas & Betts K656CETP-P0410-DRGS ComboT Elbow with Test Point

MPN: K656CETP-P0410-DRGS
UPC: 075114261234
PPN: T-B-K656CETP-P0410-DRGS

$2930.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 600 Amp Base Aluminum, includes test point, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000. With Insulated Cap and Shrink-Fit Jacket Seal Kit

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Standard	ANSI/IEEE Standard 386
Conductor Range	Compressed/Stranded 1000.
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions.

IGCC	4586 Electrical connector assembly
Type	ComboT Elbow with Test Point
Application	600 Amps, 25kV Connector
Size	13.31 inches width, 10.88 inch bottom edge to center of bushing.
Material	Housing - EPDM Rubber
Voltage Rating	25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather
