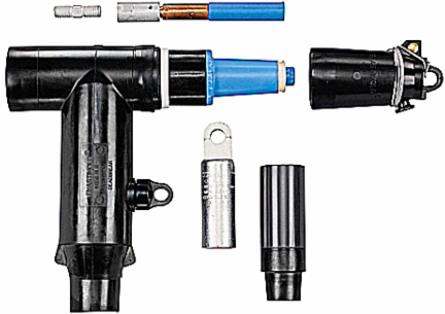

Thomas & Betts K656CETPK5300DRG ComboT Elbow with Test Point
- MPN: K656CETPK5300DRG
- UPC: 075114133302
- PPN: T-B-K656CETPK5300DRG
CAD
$3381.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp Base Aluminum, includes test point, Combo T Elbow Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Compressed/Stranded 350, or Compact/Solid 400. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Insulated Cap, Crimp Chart and Installation Instructions. |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | ComboT Elbow with Test Point |
| Application | 600 Amps, 25kV Connector |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 25kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
