Thomas & Betts 162LR-B-5240 Loadbreak Elbow Connector with Test Point
- MPN: 162LR-B-5240
- UPC: 075114186537
- PPN: T-B-162LR-B-5240
CAD
$218.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
Application15kV, 200 Amp
Size7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter
Conductor Range1/0 Stranded Wire Size
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C

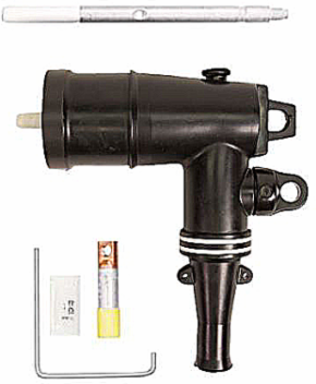

Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Crimp Chart, V.D. Cap-Peroxide, 1 Installation Instructions sheet.
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 10.5x19.12x12.5
Outer Quantity15
Weight Uom2.12 lbs. Each
