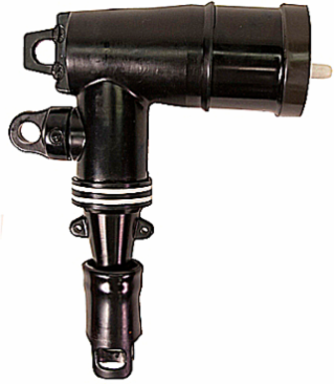

Thomas & Betts 162LRJS-B5220 Loadbreak Elbow Connector with Test Point and Jacket Seal

MPN: 162LRJS-B5220
UPC: 075114190749
PPN: T-B-162LRJS-B5220

$234.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #2 Stranded Wire Size, Bi-Metal Compression Lug

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
Standard	ANSI/IEEE Standard 386
Conductor Range	#2 Stranded/Compressed, #1 Solid/Compact, 35 mmSquared
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Butyl Auto Tape, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point and Jacket Seal
Application	15 kv, 200 Amp
Size	11.47 inch End to Center of Installation Eye X 8.20 inch width, 2.87 inch Diameter
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions
