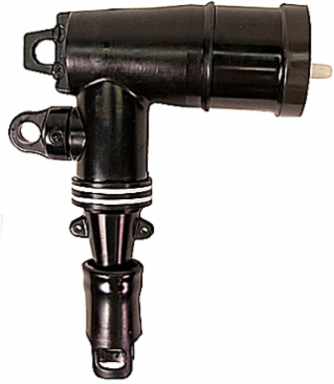

Thomas & Betts 162LRJS-B5230 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 162LRJS-B5230
- UPC: 075114190787
- PPN: T-B-162LRJS-B5230
CAD
$234.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, Wire Size #1 Stranded or 1/0 Compact/Solid, Bi-Metal Compression Lug
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- #1 Stranded/Compressed, 1/0 Solid/Compact, 50 mmSquared
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Butyl Auto Tape, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Application15 kv, 200 Amp
Size11.47 inch End to Center of Installation Eye X 8.20 inch width, 2.87 inch Diameter
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather Conditions
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 19.3x12.9x11.2
Outer Quantity15
Weight Uom2.25 lbs. Each
