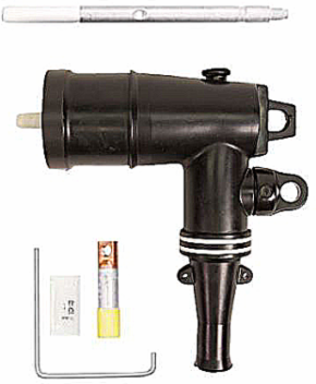

Adaptaflex 162LR-C5240-SG3 15 LB ELB GR 1/0STRN2/0SLD.80-1.06
Adaptaflex 162LR-C5240-SG3 15 LB ELB GR 1/0STRN2/0SLD.80-1.06
- MPN: 162LR-C5240-SG3
- UPC: 075114188005
- PPN: T-B-162LR-C5240-SG3
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$361.82/ EA
Description
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Features
- 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point
Specifications
Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Push-In
- Size
- 7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application15kV, 200 Amp
StandardANSI/IEEE Standard 386 / ANSI/IEEE Standard 386
Conductor Range1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Voltage Rating15 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
