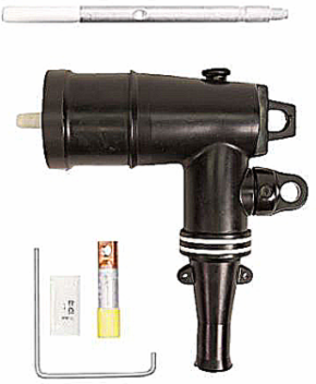

Thomas & Betts 162LR-C5260-S Loadbreak Elbow Connector with Test Point

MPN: 162LR-C5260-S
UPC: 075114358866
PPN: T-B-162LR-C5260-S

$279.65

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kv, Loadbreak Elbow with Test Point and Sealing Kit. Cable Insulation Diameter .805 to 0.905 inches. Bi-Metal Compression Connector. Conductor Size 260 - 3/0 Stranded/Compressed or 4/0 Solid/Compact. Cold-Shrinkable Jacket Seal.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point. Includes Sealing Kit.
Standard	ANSI/IEEE Standard 386
Connection	Push-In
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point
Application	15kV, 200 Amp
Size	7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter
Conductor Range	3/0 Stranded/Compressed or 4/0 Solid/Compact.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Crimp Chart, V.D. Cap-Peroxide, 1 Installation Instructions sheet.
