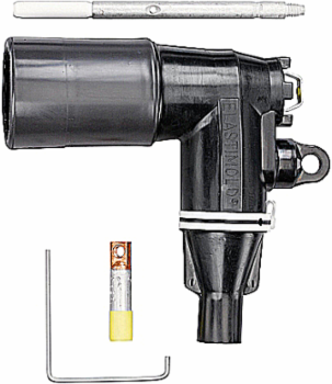

Thomas & Betts 376LR-K2240-S Loadbreak Elbow Connector with Test Point
- MPN: 376LR-K2240-S
- UPC: 075114343534
- PPN: T-B-376LR-K2240-S
CAD
$930.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0, Solid 2/0, mmSquared 53.49. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-Corrosive Capacitive Voltage Test Point.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 35kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
Application35kV, 200 Amp, Loadbreak Connector
Size9.49 inch X 7.56 inch from bottom to center of Installation O-Ring, 3.16 inch Diameter
Conductor RangeConductor Size AWG Compressed Stranded 1/0, Solid 2/0, mmSquared 53.49
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 V.D. Cap-Peroxide, Crimp Chart and Installation Instructions.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
