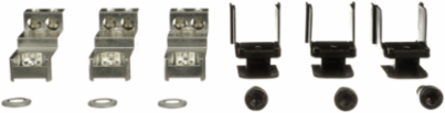

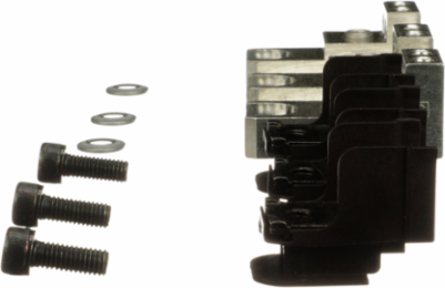

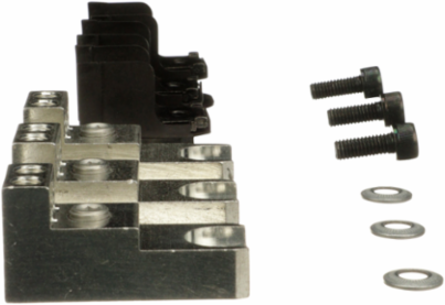

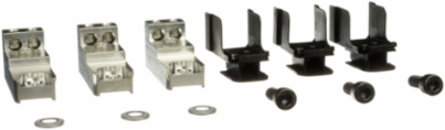

Square D PDC3JD20 PowerPact J Circuit Breaker Accessory, Power Distribution Connector, 150-250A, Set of 3
- MPN: PDC3JD20
- UPC: 785901570950
- PPN: SCH-PDC3JD20
CAD
$1062.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPact J Circuit Breaker Accessory, Power Distribution Connector, 150-250A, Set of 3
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 150-250 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Circuit Breaker Type | JG, JD, JJ, JL |
| Certificate Agency | UL, CSA |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 3 |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Package Weight(Lbs) | 322.051 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 4.5-4.5 N.m 25-50 mm²5.6-5.6 N.m 25-50 mm² (4 AWG...1 AWG), 4-4 N.m 2.5-16 mm² (14 AWG...6 AWG), 5.6-5.6 N.m 35-70 mm² |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | power distribution connector |
| Range Of Product | PowerPact J |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Reach Free Shvc | Yes |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | power distribution connector |
|---|
| Range Of Product | PowerPact J |
|---|
ETIM
| ETIM 8 | EC002050 |
|---|
| ETIM 9 | EC002050 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
