Square D

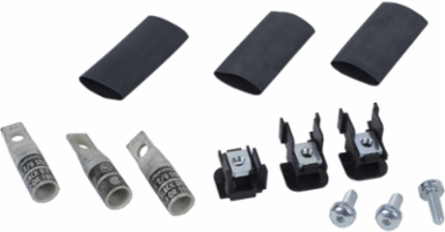

Square D CYA150HD Circuit breaker accessory, PowerPacT H, lug kit, compression, 150A, 4 to 2/0AWG, copper, qty 3

Circuit breaker accessory, PowerPacT H, lug kit, compression, 150A, 4 to 2/0AWG, copper, qty 3
  • MPN: CYA150HD
  • UPC: 785901017592
  • PPN: SCH-CYA150HD

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$400.94/ EA

Description

This lug is a connection accessory for PowrePacT H-Frame circuit breakers. This is a compression lug with a rated current of 150 amps. This compression lug is made of copper. The lug kit are for terminal connection and will accept a wire size of AWG 4 / AWG 2/0. This product complies with UL and CSA standards. This lug can be used only on standard circuit breakers. This product comes in a set of 3. This lug has a tightening torque of 19.0-10.2 Nm.

Specifications

Specifications

Range Of Product
PowerPact H
Quantity Per Set
set of 3
Accessory / Separate Part Categoryconnection accessory
Product Or Component Typemechanical lug

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2206027EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206027EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions

Complementary

[In] Rated Current
150-150 A
Tightening Torque
9.0-10.2 N.m AWG 4...AWG 2/0)
Material
copper
Mounting Modeunit mount
Awg GaugeAWG 4...AWG 2/0 copper

Environment

Product Certifications
UL || CSA
