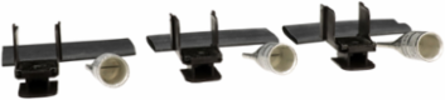

Square D CYA250J3 PowerPacT J Compression Lug Kit, 250A, Copper, 2/0AWG-300kcmil, Qty 3
- MPN: CYA250J3
- UPC: 785901539575
- PPN: SCH-CYA250J3
CAD
$400.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This lug kit is for PowerPacT J circuit breakers. This PowerPacT J, compression lug is a connection accessory with a rated current of 250A and is made of copper. The lugs accept 2/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 250-250 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Location Of Connection | downstream, upstream |
| Certificate Agency | CSA, UL |
| Local Publishable Date | 2026-04-10 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1913 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 3 |
| Returnability | Yes |
| Tightening Torque | 14.7-15.8 N.m (2/0 AWG...300 kcmil) |
| Accessory / Separate Part Category | connection accessory |
| Package Weight(Lbs) | 453.592 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Mode | unit mount, I-Line |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 2/0 AWG...300 kcmil copper |
| Material | copper |
| Product Or Component Type | compression lug |
| Range Of Product | PowerPact J |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Product Or Component Type | compression lug |
|---|
| Range Of Product | PowerPact J |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
