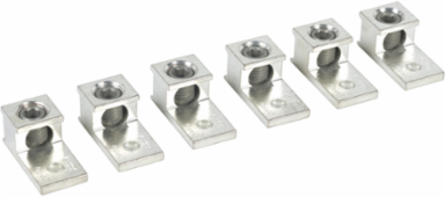

Square D CL20F Connection accessory, safety switch, double lug kit, 200A
Square D CL20F Connection accessory, safety switch, double lug kit, 200A
- MPN: CL20F
- UPC: 785901296270
- PPN: SCH-CL20F
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$426.06/ EA
Description
The lug kit provides the terminals where incoming and outgoing wires are securely connected to the safety switch. These lugs are designed to handle specific wire sizes and types (copper or aluminum), ensuring proper conductivity and mechanical strength. They ensure that wires are tightly secured using appropriate torque settings, reducing the risk of loose connections that could lead to overheating or electrical faults. This lug accepts copper conductor ranging 6–250kcmil and suitable for 200A.
Specifications
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 3...250 kcmil 1 copper
- Material
- copper
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- lug kit
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Offer Owner Code
- 190788
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Number Of Devices6
Product Destinationsafety switch 200-200 A
ReturnabilityYes
Tightening Torque275-275 lbf.in (AWG 6...250 kcmil)
Warranty In Months18
Pn1
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- lug kit
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
