Killark MBL151-GD4 150W High Pressure Sodium Stanchion Mount, 120V, 1-1/4 Inch, Corrosion Resistant
- MPN: MBL151-GD4
- UPC: 783936994000
- PPN: HBL-MBL151-GD4
CAD
$1381.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

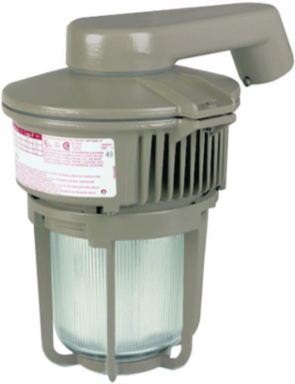

150W HPS Fluorescent 120V 1-1/4" Stanchion Mount
Features
- Ballast tank and splice box – corrosion resistant copper-free aluminum alloy
- Baked powder epoxy/polyester finish, electrostatically applied for complete, uniform corrosion protection
- All external hardware – stainless steel
- Guard – copper-free aluminum alloy
- Normally shipped as components for quick delivery
- Refractor guard – steel with corrosion resistant finish
- Reflector – lightweight, corrosion resistant fiberglass reinforced polyester
- Fluorescent models furnished with lamps.
- Energy efficient instant on white light (2700K). 10,000 hour lamp life
- HID lamp holders are E26 medium base
- The MB Series is a compact low bay light fixture using compact fluorescent and HID lamps. The design of the MB Series makes it suitable for harsh and hazardous environments using a cast copper-free aluminum. Its low profile and compact design allow the MB Series to fit in areas where larger fixtures would not fit while still supplying high quality illumination.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 1-1/4" |
| Voltage Rating | 120 VAC |
| Frequency Rating | 60 Hz |
| Mounting Type | Stanchion 25° |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | HPS 150W 120V 1-1/4" STAN |
| Harmonization Code | 9405416000 |
| MSDS Flag | No |
| Light Source | High Pressure Sodium |
| Series | MB Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Total Units | 1 EA |
| Hazardous Rating(s) | Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Optic Type | Glass Globe - Fluted |
| Finish Type | Powder Epoxy Paint |
| Lamp Type | Medium Base |
| Wattage | 150 W |
| Class Code | D20 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D20D202 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936994000 |
| NAICS Code | 3351222116 |
