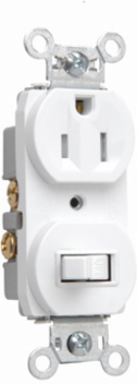

Pass & Seymour 691TRW 15A 120V Combination Switch & Tamper-Resistant Receptacle, White, 1.32 Inch Width, 4.06 Inch Height
- MPN: 691TRW
- UPC: 785007240832
- PPN: P-S-691TRW
CAD
$14.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 120V Combination Switch & Tamper-Resistant Receptacle, White, 1.32 Inch Width, 4.06 Inch Height
Features
- Easily accessible break-off separate or common feed.
- One-piece heat-treated triple-wipe brass power contacts.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.15 in
- Color
- White
- Width
- 1.32 in
- Country of Origin
- Mexico
- Type
- Outlet
- Load Type
- CFL
- Standard
- UL20
- Amperage
- 15.0 A
- Voltage
- 120 VAC
- Type
- Combination
- Number of Gangs
- 1
- Load Type
- Universal
- Indoor/Outdoor
- Indoor
- Type
- Tamper-Resistant
- Mounting Type
- Wall Box
- Wall Plate Included
- No
- Operating Cycles
- 30000.0
- Requires Neutral Wire
- Yes
- Connection Location
- Side Only
- Application Sector
- Residential
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #12 AWG
Height4.06 in
FinishSatin
MaterialThermoplastic
Product LinePass & Seymour
TypeSwitch
Load TypeLED
StandardUL498
Load TypeXenon
Voltage125 VAC
Load TypeHalogen
Switch TypeToggle
FeaturesCombination
Load TypeFluorescent
Load TypeIncandescent
Number of Switches1.0
Throw TypeSingle Throw
Contact ConfigurationN-O
Number of PolesSingle Pole
Application SectorHospitality
Load Rating15 A @ 120/125 VAC
Warranty Type1-Year Limited Warranty
