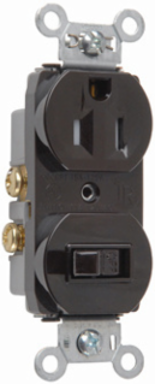

Pass & Seymour 691TR 15A Combination Toggle Switch & Tamper-Resistant Outlet, Brown, 4.06 Inch Height
- MPN: 691TR
- UPC: 785007242454
- PPN: P-S-691TR
- UNSPSC: 39122211
CAD
$14.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A Combination Toggle Switch & Tamper-Resistant Outlet, Brown, 4.06 Inch Height
Features
- Easily accessible break-off separate or common feed.
- One-piece heat-treated triple-wipe brass power contacts.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 4.06 in |
| Color | Brown |
| Material | Thermoplastic |
| Amperage | 15.0 A |
| Standard | UL20; UL498 |
| Environmental Conditions | Flammability: UL94 V2 |
| Operating Cycles | 30000.0 |
| Application Sector | Hospitality; Residential |
| Switch Type | Toggle |
| Requires Neutral Wire | Yes |
| Throw Type | Single Throw |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Mounting Type | Wall Box |
| Load Rating | 15 A @ 120/125 VAC |
| Wall Plate Included | No |
| Load Type | Incandescent; Halogen; LED; CFL; Xenon; Fluorescent; Universal |
| Depth | 1.15 in |
|---|---|
| Width | 1.32 in |
| Finish | Satin |
| Product Line | Pass & Seymour |
| Number of Poles | Single Pole |
| Contact Configuration | N-O |
| Special Features | Dual mechanical shutter system to help prevent insertion of foreign objects. Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements. |
| Features | Combination |
| Number of Switches | 1.0 |
| Indoor/Outdoor | Indoor |
| Number of Gangs | 1 |
| Wire Connection Type | Screw Terminals |
| Connection Location | Side Only |
| Warranty Type | 1-Year Limited Warranty |
| Type | Combination; Outlet; Switch; Tamper-Resistant |
| Voltage | 125 VAC; 120 VAC |
