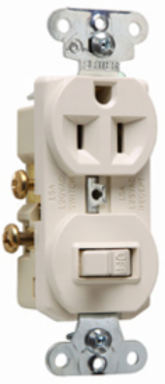

Pass & Seymour 691LA 15A Combination Toggle Switch & Receptacle, 120V, Light Almond, 4.06 Inch Height
- MPN: 691LA
- UPC: 785007691054
- PPN: P-S-691LA
CAD
$22.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A Combination Toggle Switch & Receptacle, 120V, Light Almond, 4.06 Inch Height
Features
- Easily accessible break-off separate or common feed.
- One-piece heat-treated triple-wipe brass power contacts.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.94 in
- Special Features
- Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
- Color
- Light Almond
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Type
- Switch
- Load Type
- LED
- Standard
- UL498
- Load Type
- Xenon
- Voltage
- 125 VAC
- Load Type
- Halogen
- Seismic Tested
- No
- Load Type
- Universal
- Indoor/Outdoor
- Indoor
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Throw Type
- Single Throw
- Contact Configuration
- N-O
- Number of Poles
- Single Pole
- Application Sector
- Hospitality
- Load Rating
- 15 A @ 120/125 VAC
- Warranty Type
- 1-Year Limited Warranty
- Environmental Conditions
- Flammability: UL94 V2
Height4.06 in
Width1.32 in
FinishSatin
MaterialThermoplastic
TypeOutlet
Load TypeCFL
StandardUL20
Amperage15.0 A
Voltage120 VAC
TypeCombination
Number of Gangs1
Switch TypeToggle
FeaturesCombination
Load TypeFluorescent
Mounting TypeWall Box
Wall Plate IncludedNo
Operating Cycles30000.0
Requires Neutral WireYes
Connection LocationSide Only
Application SectorResidential
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #12 AWG
