Lutron

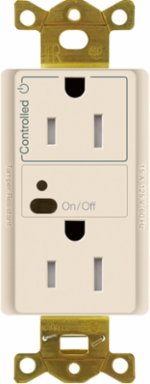

Lutron CAR2S-15-STR-LA Wireless Split Receptacle 15A Light Almond, 4.69x2.94 Inch, Plastic/Metal

Wireless Split Receptacle 15A Light Almond, 4.69x2.94 Inch, Plastic/Metal
  • MPN: CAR2S-15-STR-LA
  • UPC: 784276221894
  • PPN: LUT-CAR2S-15-STR-LA
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$299.50/ EA

Description

The Wireless Receptacle is a radio-frequency (RF) receptacle switching solution that is capable of controlling 15 A or 20 A split or duplex style receptacles when paired with Pico wireless controls and Radio Powr Savr occupancy/vacancy sensors.

Features

  • Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
  • Utilizes Lutron Clear Connect RF Technology
  • Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
  • Capable of switching general-purpose loads
  • Capable of switching downstream receptacles
  • Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
  • Tamper resistant
  • RoHS Compliant
  • Includes required controlled outlet labels for code compliance
  • Includes plastic screw terminal covers
  • Half switching
  • Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors
  • Capable of switching general purpose loads and downstream receptacles
  • 434 MHz

Specifications

Specifications

Connection
Screw terminal
Temperature Rating, Maximum
122 F
Voltage Rating
120
Amperage Rating
15 A
Wattage
1000 W
Decorative Color
Light Almond
Insulation
Plastic
Mounting
Wallbox
Temperature Rating
32 to 122 F
Size
4.69 x 2.94;119 x 75 in;mm
Color
Light Almond
Environmental Conditions0 to 90% humidity, non-condensing
TypeWireless split receptacle
Wire Size12 to 14
Number of Wires3,4,5
Family ColorBeige
Number of Poles2
Material QualityPlastic/Metal
MaterialPlastic/Metal
FinishGloss
Aesthetic FinishGlossy
