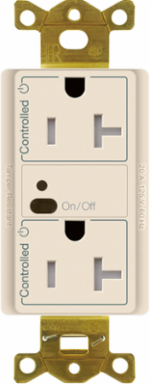

Lutron CAR2S-20-DTR-LA Vive wireless receptacle, 20 A duplex, in light almond

MPN: CAR2S-20-DTR-LA
UPC: 784276221962
PPN: LUT-CAR2S-20-DTR-LA
UNSPSC: 39121406

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$333.50/ EA

Qty:

Loading add to cart quantity...

Description

The Wireless Receptacle is a radio-frequency (RF) receptacle switching solution that is capable of controlling 15 A or 20 A split or duplex style receptacles when paired with Pico wireless controls and Radio Powr Savr occupancy/vacancy sensors.

Features

Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
Utilizes Lutron Clear Connect RF Technology
Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
Capable of switching general-purpose loads
Capable of switching downstream receptacles
Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
Tamper resistant
RoHS Compliant
Includes required controlled outlet labels for code compliance
Includes plastic screw terminal covers
Dual switching
Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors
Capable of switching general purpose loads and downstream receptacles
434 MHz

Specifications

Amperage Rating: 20 A

Decorative Color: Light Almond

Family Color: Beige

Number of Wires: 3,4,5

Type: Wireless duplex receptacle

Wattage: 1500 W

Insulation: Plastic

Material Quality: Plastic/Metal

Temperature Rating: 32 to 122 F

Color: Light Almond

Size: 4.69 x 2.94;119 x 75 in;mm

ConnectionScrew terminal

Environmental Conditions0 to 90% humidity, non-condensing

Number of Poles2

Temperature Rating, Maximum122 F

Voltage Rating120

Wire Size12 to 14

MaterialPlastic/Metal

MountingWallbox

Aesthetic FinishGlossy

FinishGloss

Downloads
