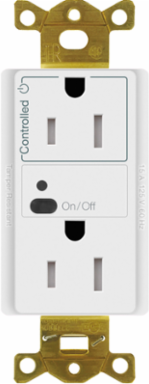

Lutron CAR2S-15-STR-WH Wireless Split Receptacle 15A, White, 4.69 x 2.94 Inch
Lutron CAR2S-15-STR-WH Wireless Split Receptacle 15A, White, 4.69 x 2.94 Inch
- MPN: CAR2S-15-STR-WH
- UPC: 784276221870
- PPN: LUT-CAR2S-15-STR-WH
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$299.50/ EA
Description
The Wireless Receptacle is a radio-frequency (RF) receptacle switching solution that is capable of controlling 15 A or 20 A split or duplex style receptacles when paired with Pico wireless controls and Radio Powr Savr occupancy/vacancy sensors.
Features
- Compatible with the Vive wireless hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet, or computer. The hub enables control and monitoring of all Vive devices and can be added any time.
- Utilizes Lutron Clear Connect RF Technology
- Receives wireless inputs from up to 10 Pico wireless controls and 10 Radio Powr Savr occupancy / vacancy sensors
- Capable of switching general-purpose loads
- Capable of switching downstream receptacles
- Adaptive Switching: maximizes relay life by switching at the point of minimum energy on the AC power curve
- Tamper resistant
- RoHS Compliant
- Includes required controlled outlet labels for code compliance
- Includes plastic screw terminal covers
- Half switching
- Utilizes Clear connect RF technology to communicate wirelessly to Pico wireless controls and Radio powr Savr occupancy/vacancy sensors
- Capable of switching general purpose loads and downstream receptacles
- 434 MHz
Specifications
Specifications
- Type
- Wireless split receptacle
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- Family Color
- White
- Wire Size
- 12 to 14
- Number of Wires
- 3,4,5
- Number of Poles
- 2
- Insulation
- Plastic
- Material Quality
- Plastic/Metal
- Material
- Plastic/Metal
- Finish
- Gloss
- Color
- White
ConnectionScrew terminal
Temperature Rating, Maximum122 F
Voltage Rating120
Amperage Rating15 A
Wattage1000 W
Decorative ColorWhite
MountingWallbox
Temperature Rating32 to 122 F
Size4.69 x 2.94;119 x 75 in;mm
Aesthetic FinishGlossy
