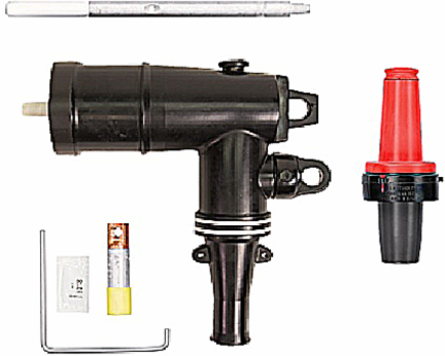

Thomas & Betts 162A4-B5250-S Loadbreak Elbow with Test Point and Bushing
- MPN: 162A4-B5250-S
- UPC: 075114318839
- PPN: T-B-162A4-B5250-S
CAD
$423.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 200 Amps, Loadbreak, Elbow-Bushing Insert, with Sealing Kit, Cable Insulation Diameter .635 - .905 inches, Bi-Metal Lug, Conductor Size 2/0 Stranded/Compressed or 3/0 Solid/Compact.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Non-corrosive capacitive test point
- Standard
- ANSI/IEEE Standard 386
- Connection
- Crimped Compression Lug
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow with Test Point and Bushing
Application15kV 200 Amp
SizeBushing 7.17 inch Length 2.90 inch Diameter. Elbow 7.76 inch x 9.03 inch.
Conductor RangeConductor Size AWG Compressed Stranded 2/0 or Solid 3/0
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist OfElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bushing Insert, Protective Shipping Cap, Tube Lubricant, Crimp Chart, V.D. Cap Peroxide, Installation Instructions.
