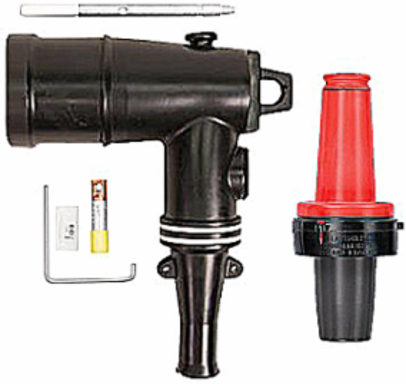

Thomas & Betts 161A4-B-5240 Loadbreak Elbow and Bushing
- MPN: 161A4-B-5240
- UPC: 075114317481
- PPN: T-B-161A4-B-5240
CAD
$353.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kv, 200 Amp Elbow and Bushing Insert Kit, Loadbreak, Cable Insulation Diameter .635-.905 Inches, Bi-Metal Lug, Conductor Size 1/0-2/0. The use of a Sealing Kit is Recommended.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Provision for Hot Stick Operation, Provision for Ground Wire Connection
- Standard
- ANSI/IEEE Standard 386
- Connection
- Crimped Compression Lug
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow and Bushing
Application15kV 200 Amp
SizeBushing 7.17 inch Length 2.90 inch Diameter. Elbow 7.76 inch x 9.03 inch.
Conductor RangeConductor Size 1/0-2/0.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist OfElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bushing Insert, Protective Shipping Cap, Tube Lubricant, Crimp Chart, V.D. Cap Peroxide, Installation Instructions.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
