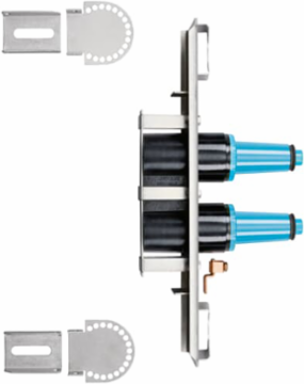

Thomas & Betts 274J2(1) 25KV 200A LB JUNCTION 2PT REV1
- MPN: 274J2(1)
- UPC: 783786331376
- PPN: T-B-274J2(1)
- UNSPSC: 39121421
CAD
$1317.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Loadbreak 2 Point Junction. Revision 1.
Specifications
Additional Information
- Application
- Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
- Color
- Black
- Effective Date
- 20020521
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 19 inch long Mounting Plate, 9.60 inch Depth, 1.80 inch Diameter, 4.00 inch Center to Center
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 kV
Brand / LabelElastimold
Current Rating200 A
Includes1 Molded Junction, 2 Protective Shipping Caps, 2 Tubes Lubricant, 1 Installation Instruction Sheet, Mounting Hardware
MaterialEPDM Rubber, Stainless Steel Mounting Hardware
Product TypeLoadbreak 2-Way Junction
Special Functions25kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
