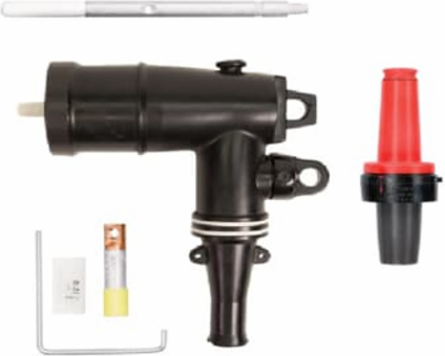

Thomas & Betts 162A4-C5270 15KV 200A LB ELBOW-BUSHING INSERT
- MPN: 162A4-C5270
- UPC: 075114353977
- PPN: T-B-162A4-C5270
- UNSPSC: 39121421
CAD
$372.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15kV, 200 Amp, Loadbreak Elbow with Bushing Insert Kit with Test Point, Cable Insulation Diameter C - 0.805 to 1.060 inch (20.45-26.92mm). Bi-Metal Compression Lug, Conductor Size 270 -4/0 Stranded/Compressed or 250 kcmil Solid/Compact.
Features
- Non-corrosive capacitive test point
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Bushing 7.17 inch Length 2.90 inch Diameter. Elbow 7.76 inch x 9.03 inch |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 15kV 200 Amp |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 4/0 STR/COMPR AWG , 250 SOL/COMP kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
