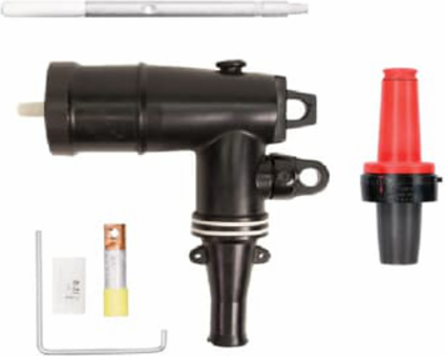

Thomas & Betts 162A4-B5250 15KV 200A KIT ELBOW -BUSHING INSERT
- MPN: 162A4-B5250
- UPC: 075114319744
- PPN: T-B-162A4-B5250
- UNSPSC: 39121421
CAD
$367.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 200 Amp, Loadbreak Elbow-Bushing Insert, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0
Specifications
Additional Information
| Application | 15kV 200 Amp |
|---|---|
| Color | Black |
| Current Rating | 200 A |
| Environmental Conditions | Fully Submersible |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR>1000V |
| Size | Bushing 7.17 inch Length 2.90 inch Diameter. Elbow 7.76 inch x 9.03 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20161006 |
| Includes | Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bushing Insert, Protective Shipping Cap, Tube Lubricant, Crimp Chart, V.D. Cap Peroxide, Installation Instructions. |
| Material | Housing - EPDM Rubber |
| Product Type | Loadbreak Elbow with Test Point and Bushing |
| Special Functions | Non-corrosive capacitive test point |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
