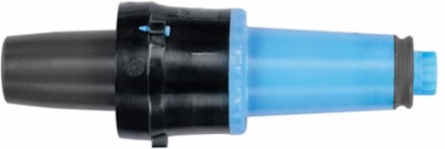

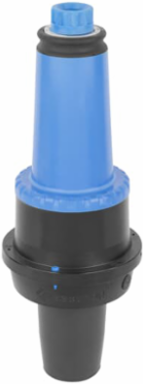

Thomas & Betts 2701A4 LB BUSHING INSERT 25KV 200A
- MPN: 2701A4
- UPC: 783786652877
- PPN: T-B-2701A4
- UNSPSC: 39121421
CAD
$193.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Bushing Insert, includes internal torquing feature using 200AT Assembly Tool. Length 8.93 inch, Widest Diameter 2.9 inch.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Special Functions | Includes Internal Torquing Featue Using 200AT Assembly Tool. |
| Color | Black |
|---|---|
| Effective Date | 19980115 |
| Material | Housing - EPDM Rubber |
| Product Type | Bushing Insert |
| Voltage Rating | 25 kV |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
